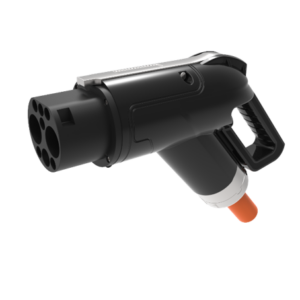

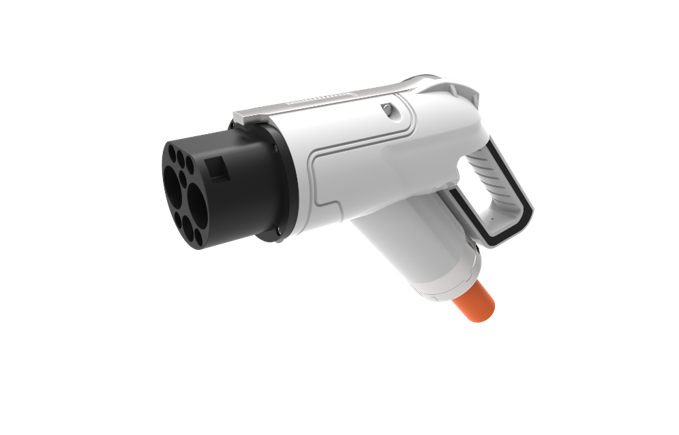

DC charging connector – GBT Standard

Description
Specification parameters
Rated operating current              80A/125A/200A/250A
Rated operating voltage 750V/1000VDC
Insulation resistance         ≥ 2,000 MΩ (DC1000V)
Dielectric strength        3,500V AC   Leakage current ≤10 mA
Terminal temperature rise
> 10,000 times
<140N
Fixed pull-out force of cable                       > 250 N
Operating environment temperature       -40°C-+55°C
Flame retardant grade of plastic shell      UL94 V-0
Flame retardant test of cable          Conform to GB/T 18380.12-2008
Protection class                             IP55 operating state
GB/T 20234.1-2015

GB/T 20234.3-2015



Electronic lock – pulse type
Rated voltage 12V± 10% DC
Rated current 1.7A-2.7A
Power 32.4W
Actuation time 50ms—500ms
Service life >60000
Electronic lock – motor type
Rated voltage 12V± 10% DC
No-load current ≤ 150mA
Rupturing current ≤350mA
Actuation time 300ms±50ms
Service life >60000
